How to set up your iBX440 player for a mirroring configuration and connect it to SpinetiX ARYA

• All screens have the standard 16:9 or 9:16 aspect ratio
• All screens must be in the same orientation
• All screens must have the same resolution

What you will need:

• an iBX440 player and its power supply
• 2-4 HDMI Cables
• 2-4 screens
• a SpinetiX ARYA account

Steps:

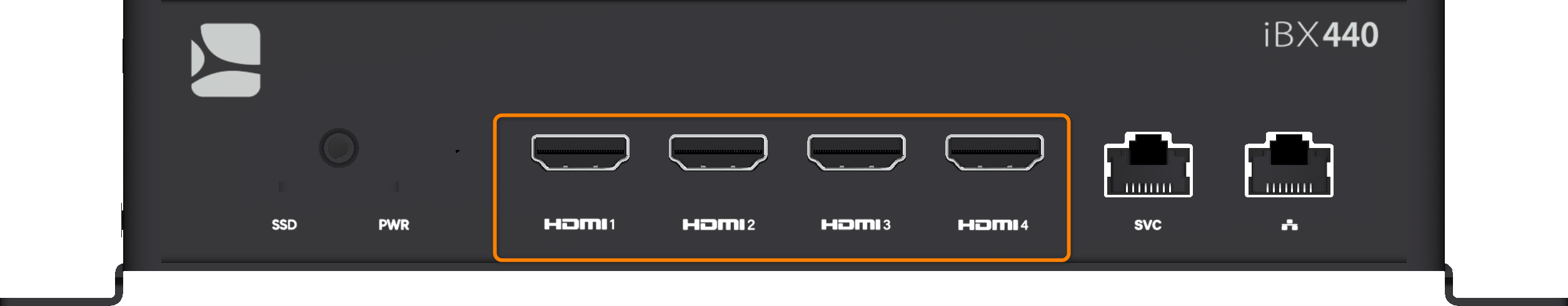

1. Unbox the player and connect the HDMI cables on the HDMI outputs on the front of the player. Connect the other end of the cables to the HDMI ports of your screens.

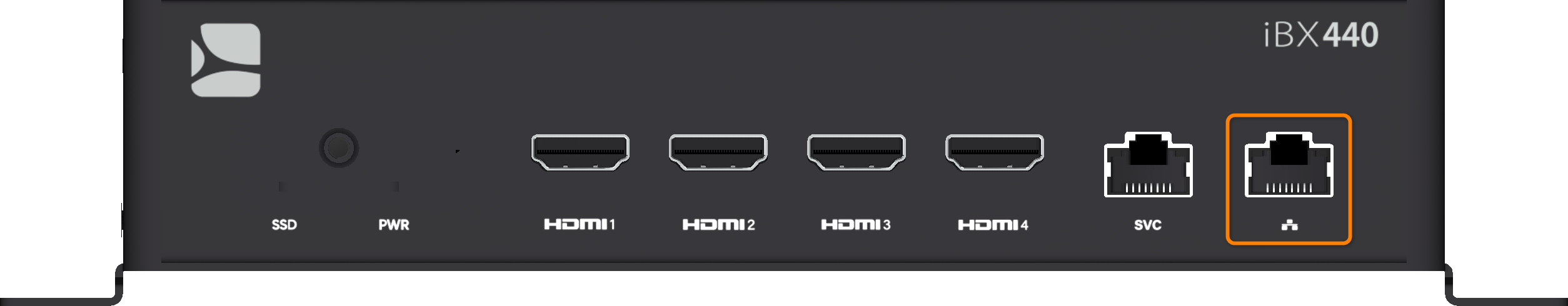

2. Next, attach one end of your Ethernet cable to your iBX440 player and the other - to a network switch connected to the internet.

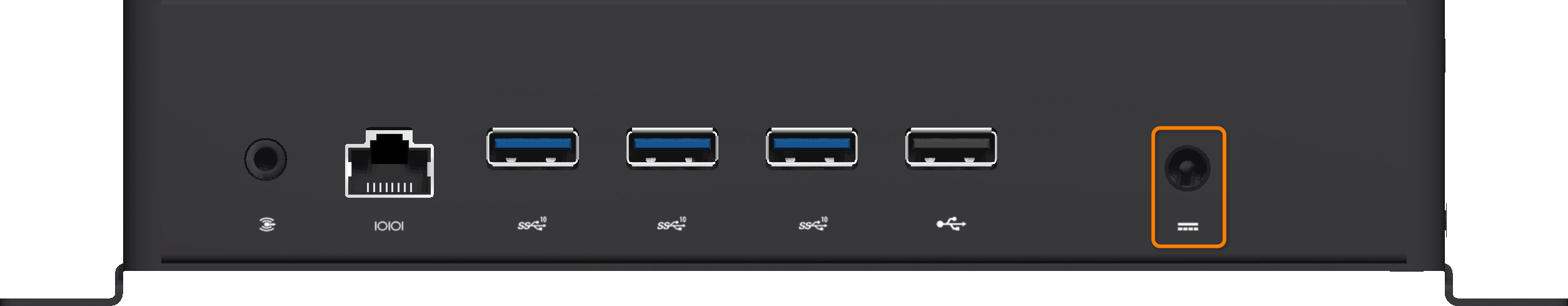

3. Connect the power cable to your iBX440 and plug the other end to a power outlet.

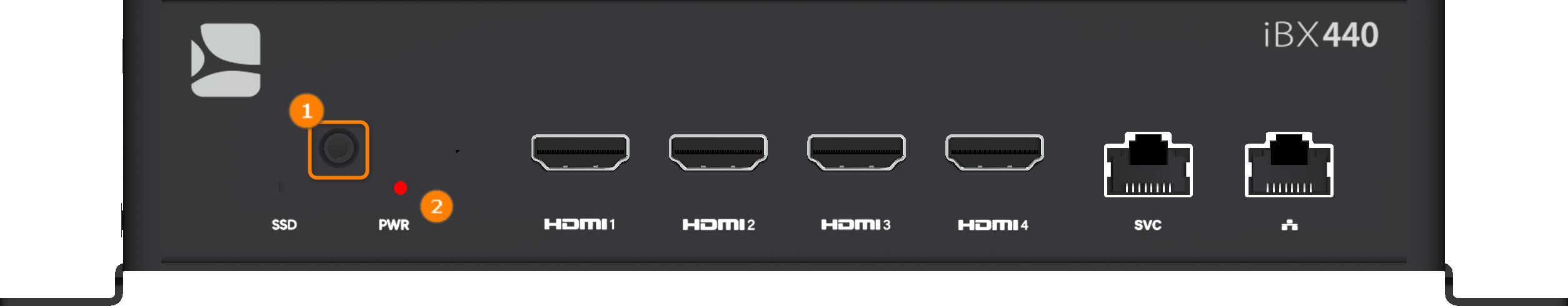

   The power LED indicator on the iBX440 should light up red, and you should hear a beep indicating that the player is booting up.

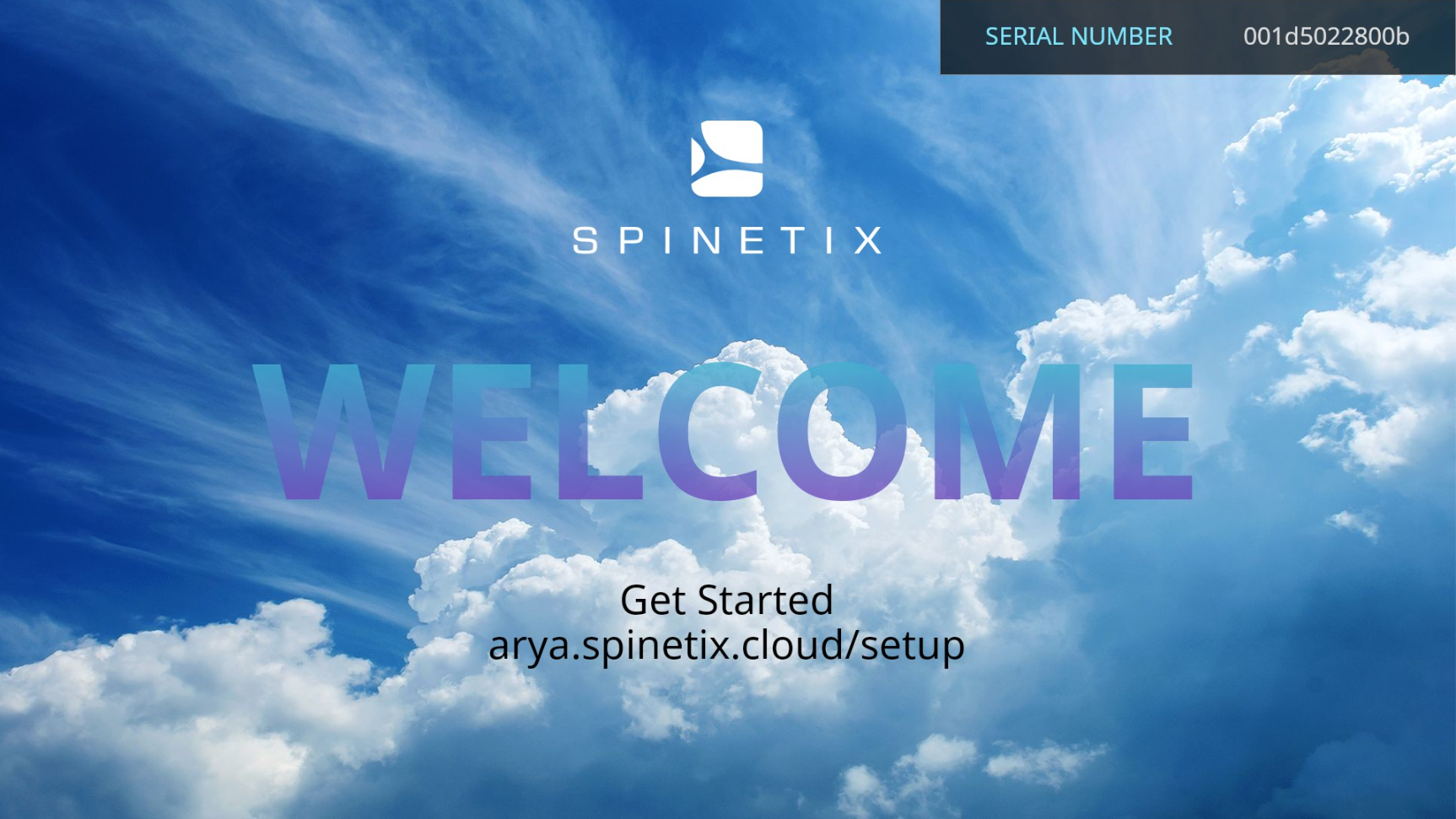

4.  Turn your player and your display on. After the player is done booting up, you should see a message reading “Welcome” on the screen.

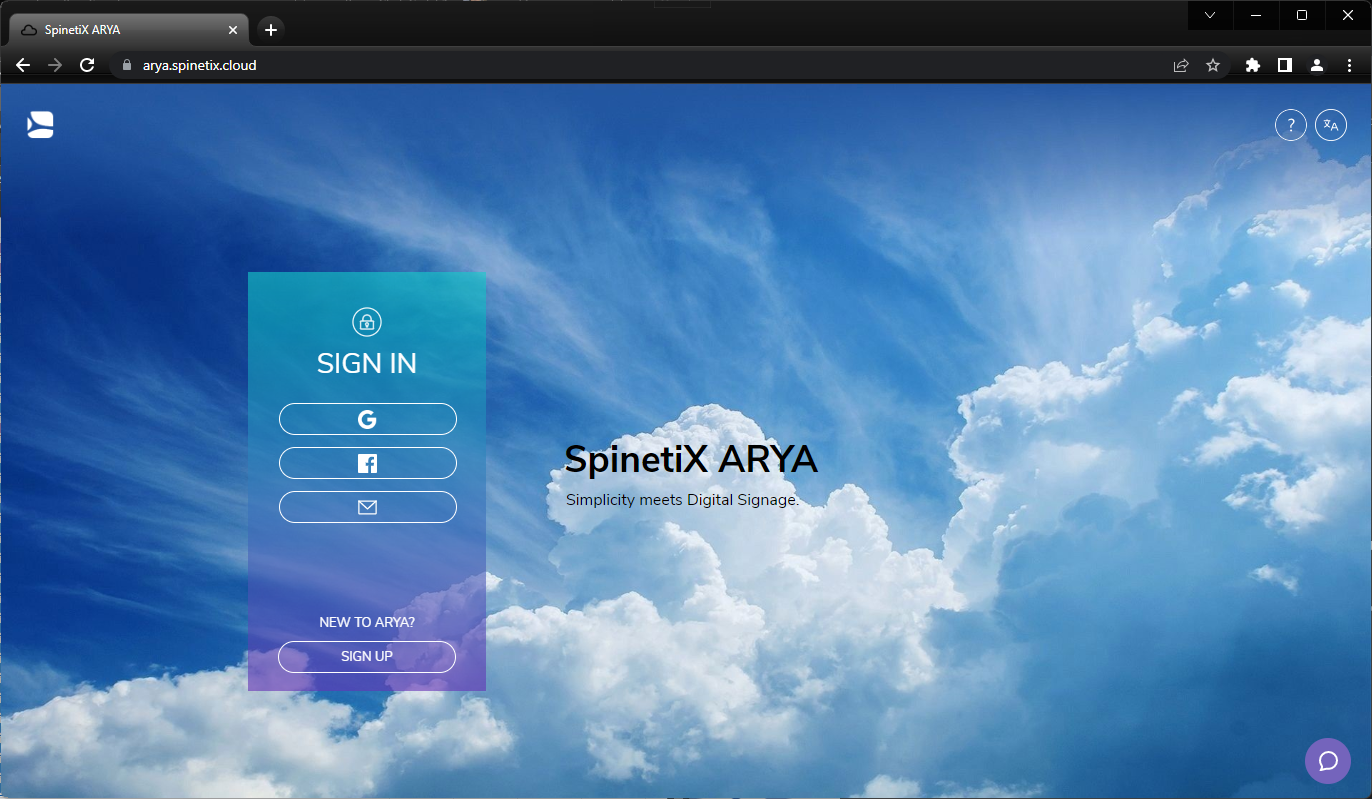

5. On the browser of your PC, go to https://arya.spinetix.cloud/setup. and sign-in to your SpinetiX ARYA Account. If you do not have one yet, create a SpinetiX ARYA account.

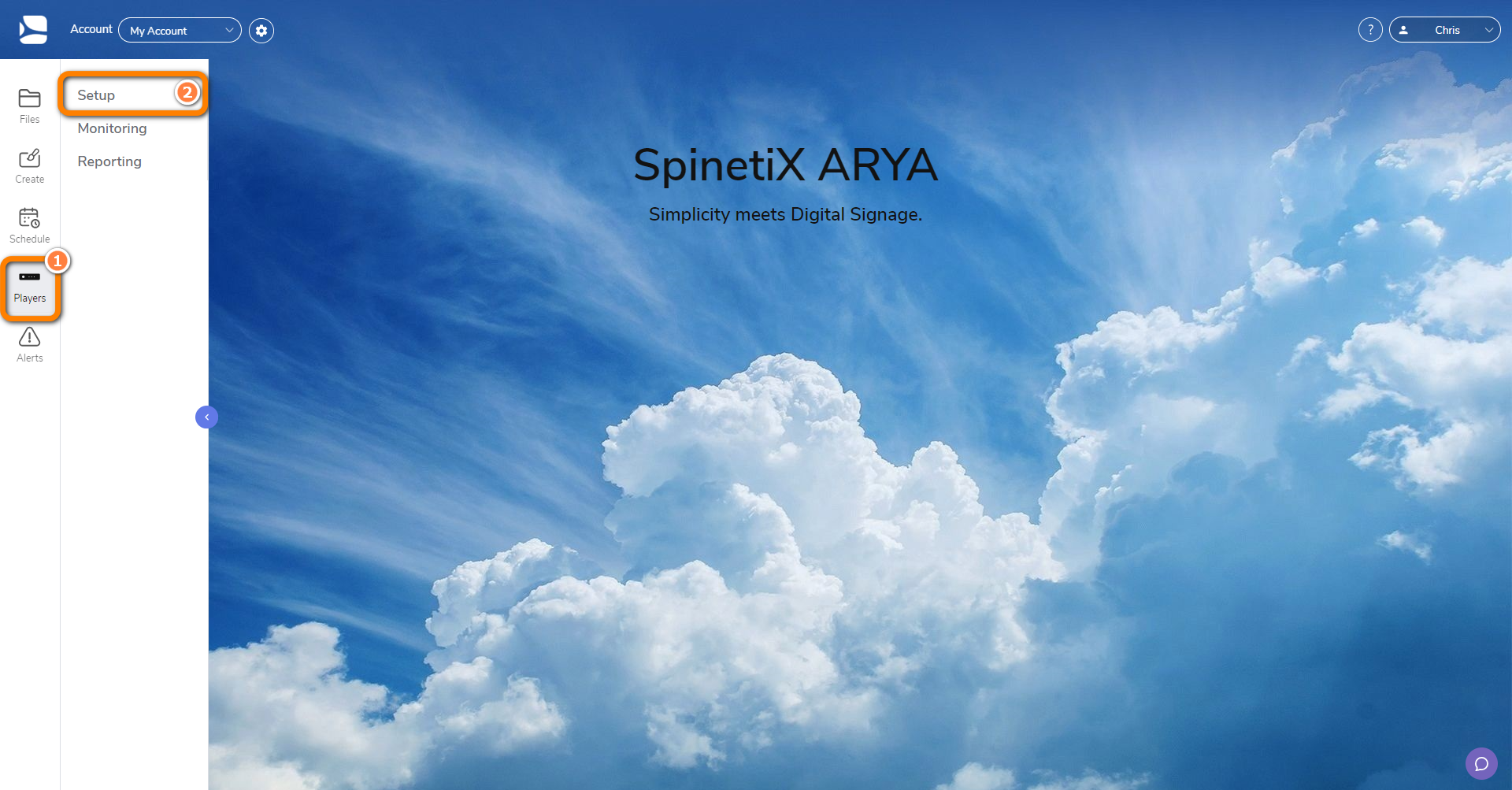

6. Once logged in, from the main menu, click on “PLAYERS” and then "Setup".

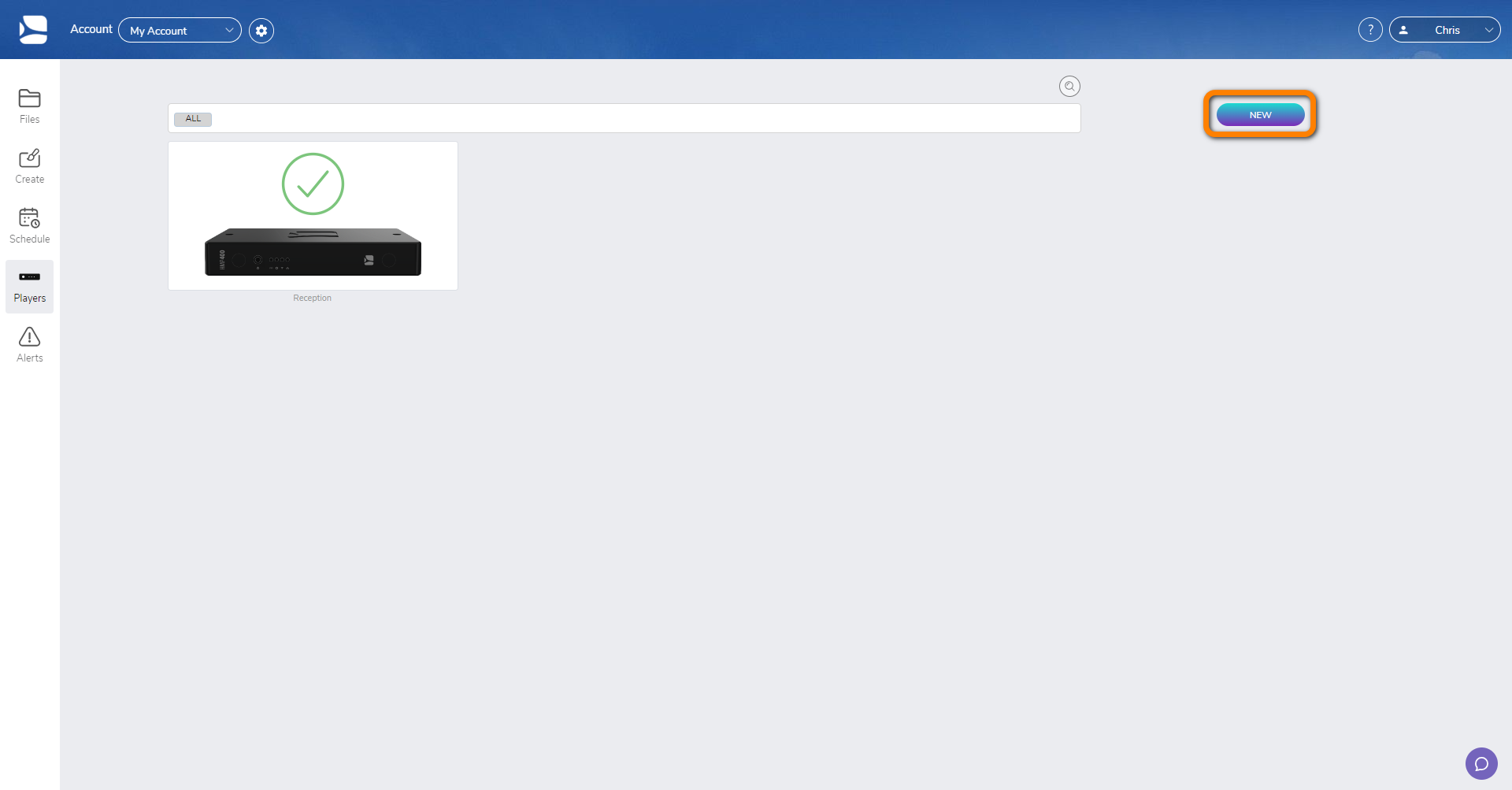

7. From the next screen, you will see all connected players to your account (if any). Click on the “Add Player” button on the top right.

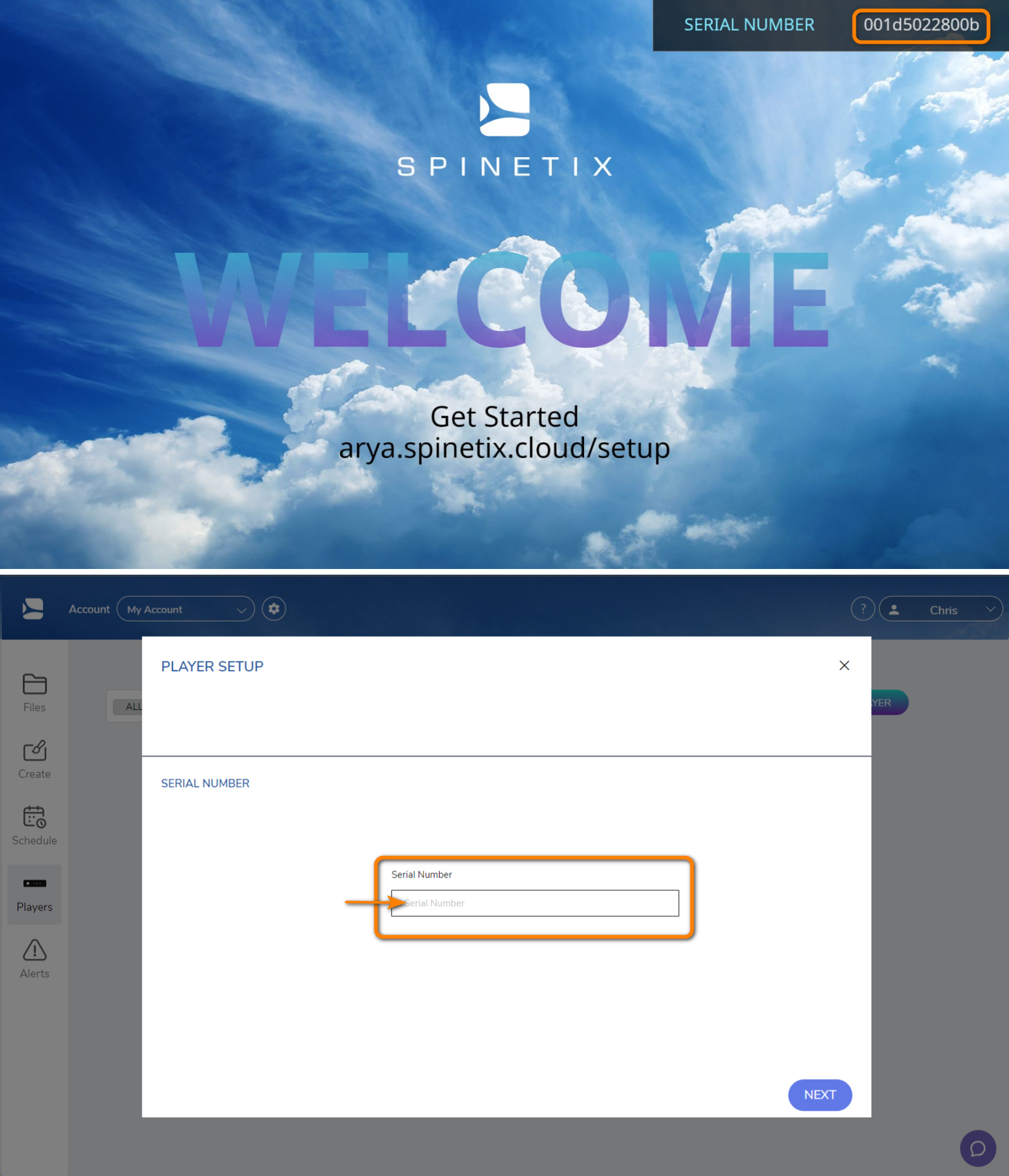

8. Enter the serial number displayed on the screen connected to HDMI 1 of your  iBX440 in the space provided by SpinetiX ARYA, then click "Next".

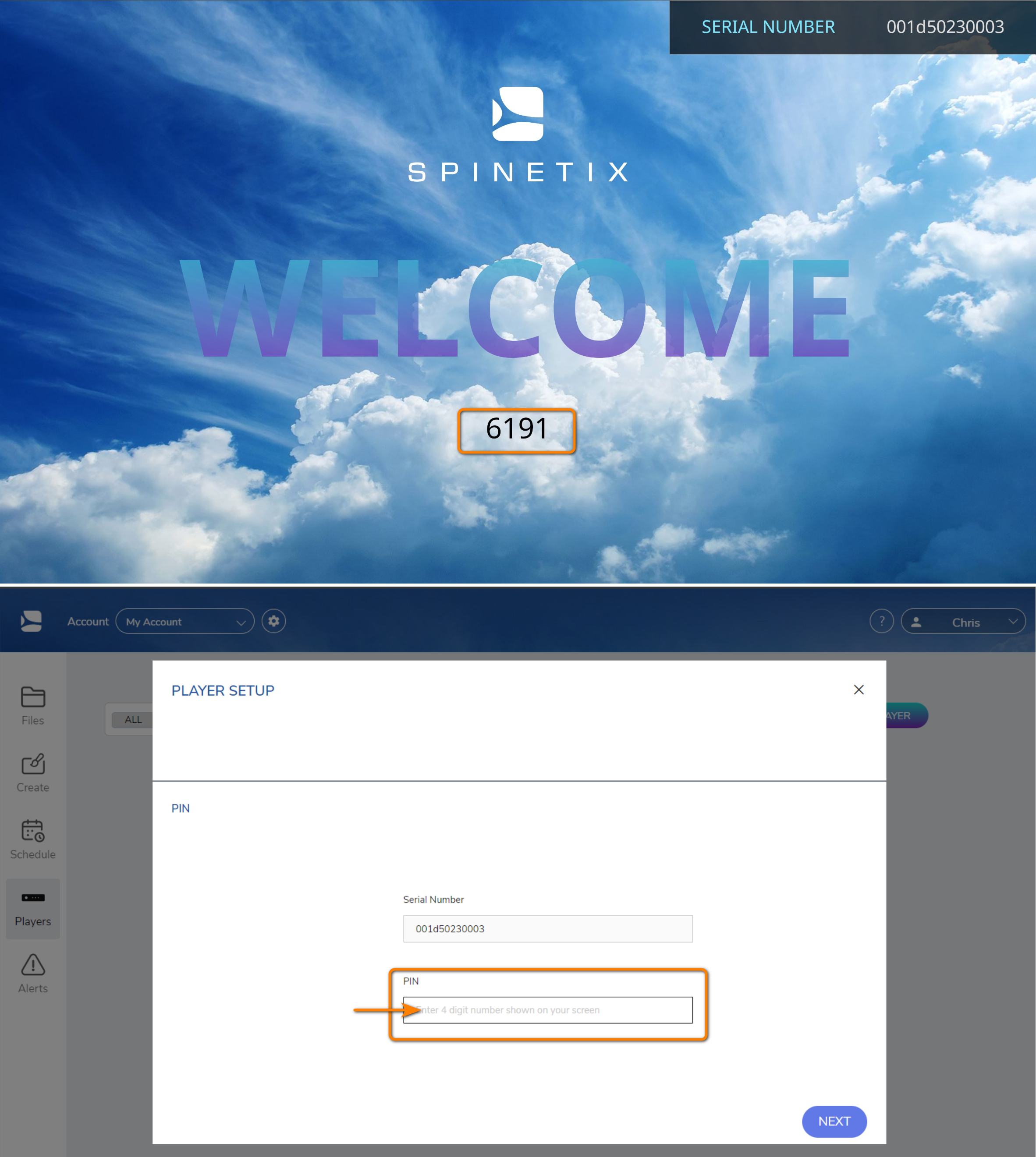

9. The display connected to your iBX440 will now show a 4-digit PIN. Enter that number in the space provided by SpinetiX ARYA then click NEXT.

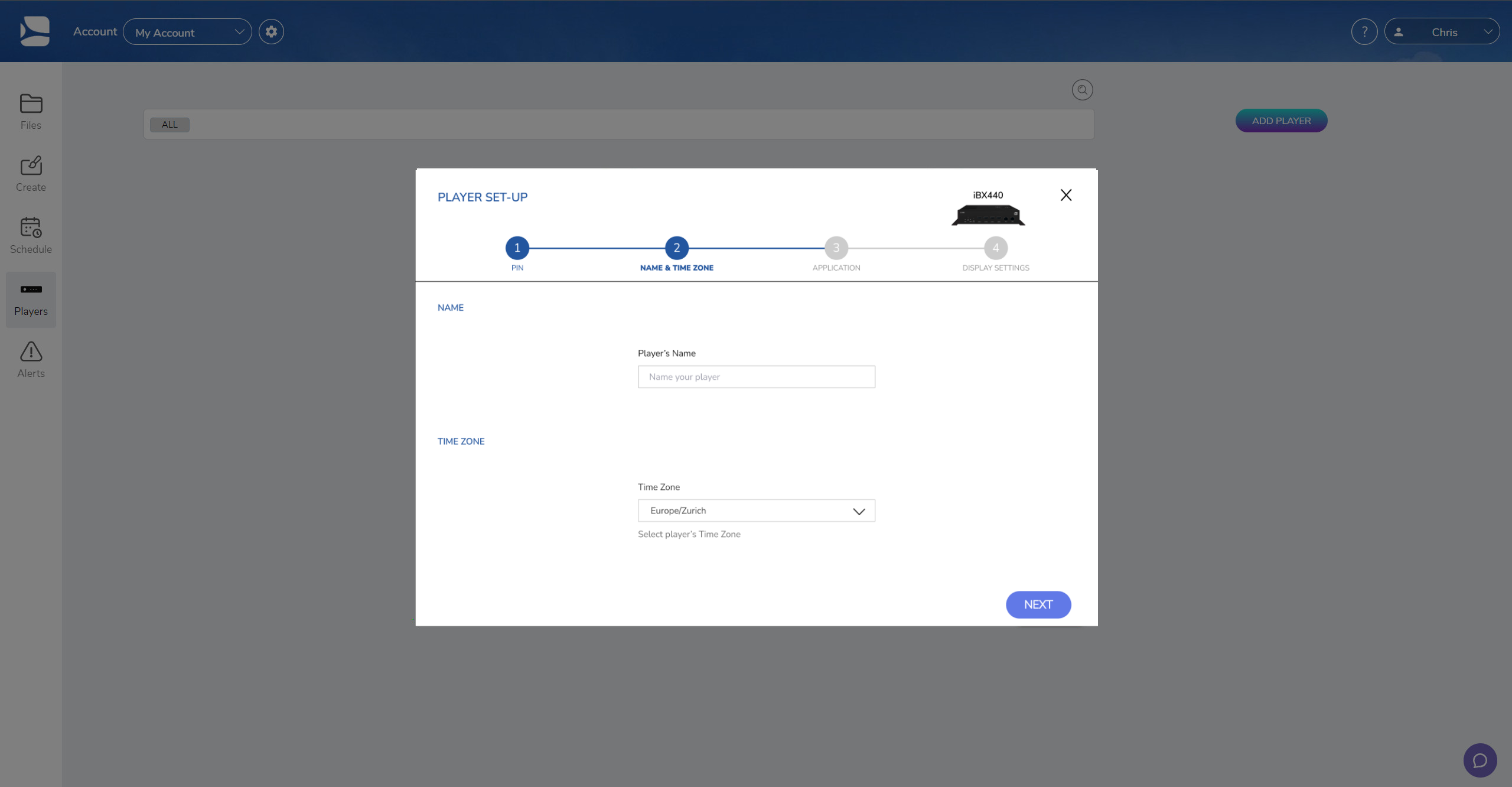

10. Give your player a name, for example “Lobby”, and select the player's time zone, then click “NEXT”.





11. For the Application: select Video Wall then click Next.

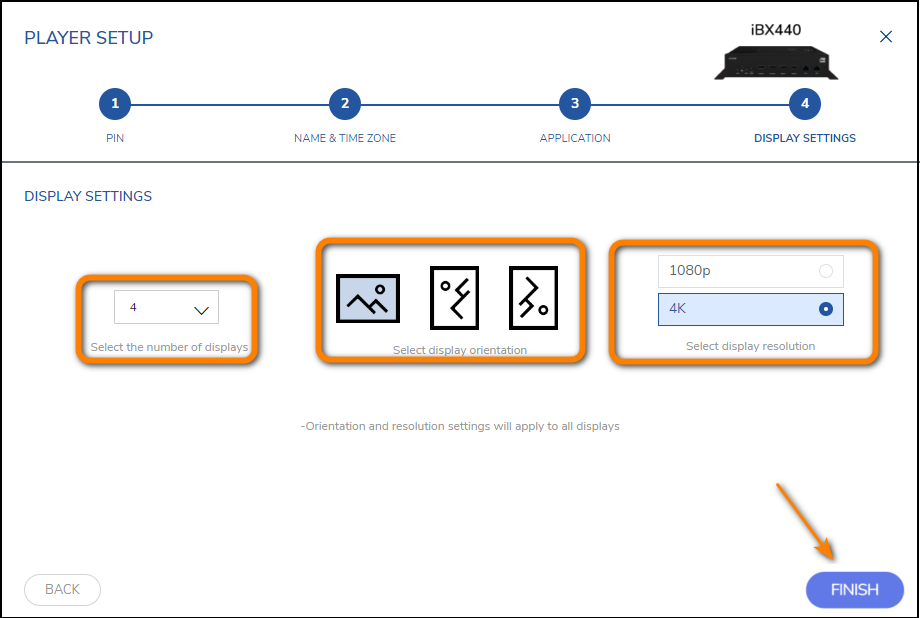

12. Choose the number of screens that you have, their orientation and resolution, then click Finish.






• This is how easy it is to setup your iBX440 player for a mirroring configuration and set it up with SpinetiX ARYA, so that you can start scheduling and publishing content on display.

  Any content that you publish will be displayed across all of your connected screens.


  Tip: The iBX440 can also be configured for a Video wall, a LED wall setup and a single screen setup, click on the links below to see how:
  How to setup your iBX440 player for a Video wall and connect it to SpinetiX ARYA..
  How to setup your iBX440 player for a LED wall and connect it to SpinetiX ARYA.
  How to setup your iBX440 player for a single screen configuration and connect it to SpinetiX ARYA.
