This article shows how to set up a SpinetiX iBX440 player for a single screen configuration.
The process is easy and only takes a few minutes. Let's get started.

What you will need:

  • an iBX440 player and its power supply
  • an HDMI Cables
  • a screen
  • a SpinetiX ARYA account

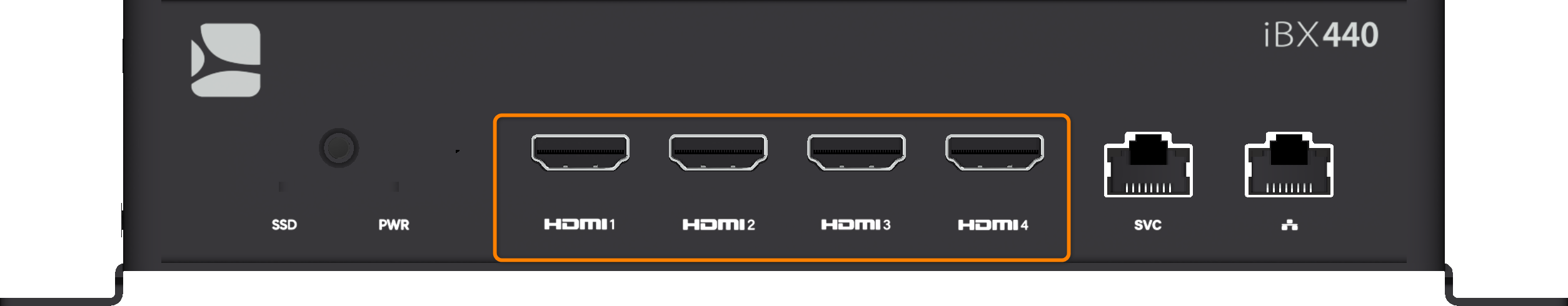

    1. Unbox the player and connect the HDMI cable to one of the HDMI outputs on the front of the player. Connect the other end of the cable to the HDMI port of your screen.

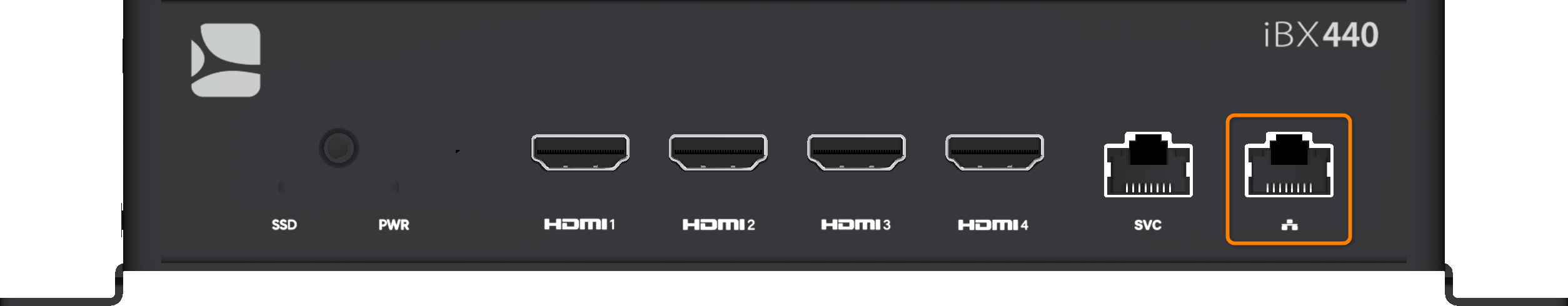

    2. Next, attach one end of your Ethernet cable to your iBX440 player and the other - to a network switch connected to the internet.

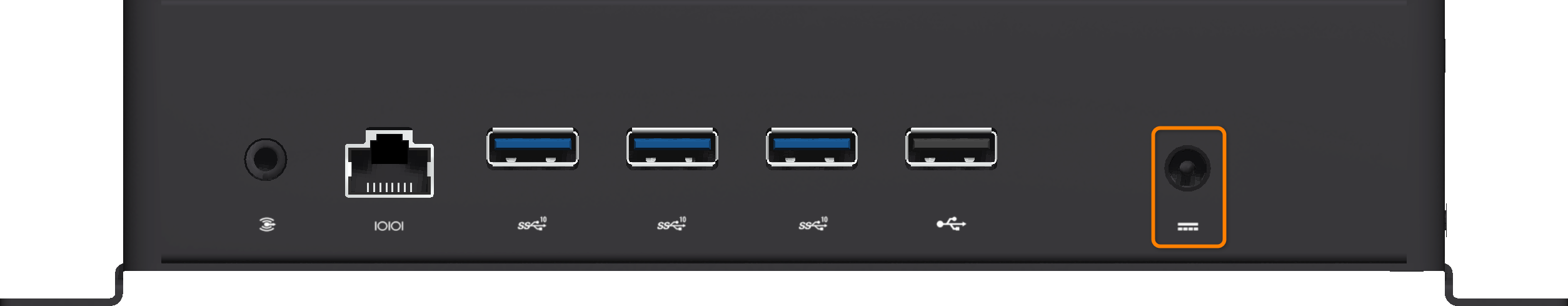

    3. Connect the power cable to your iBX440 and plug the other end to a power outlet.

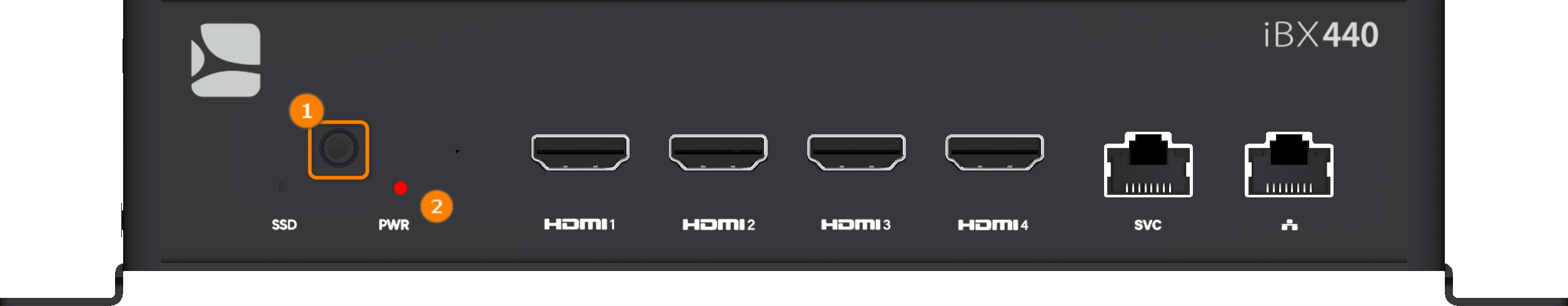

    4. The power LED indicator on the iBX440 should light up red, and you should hear a beep indicating that the player is booting up.

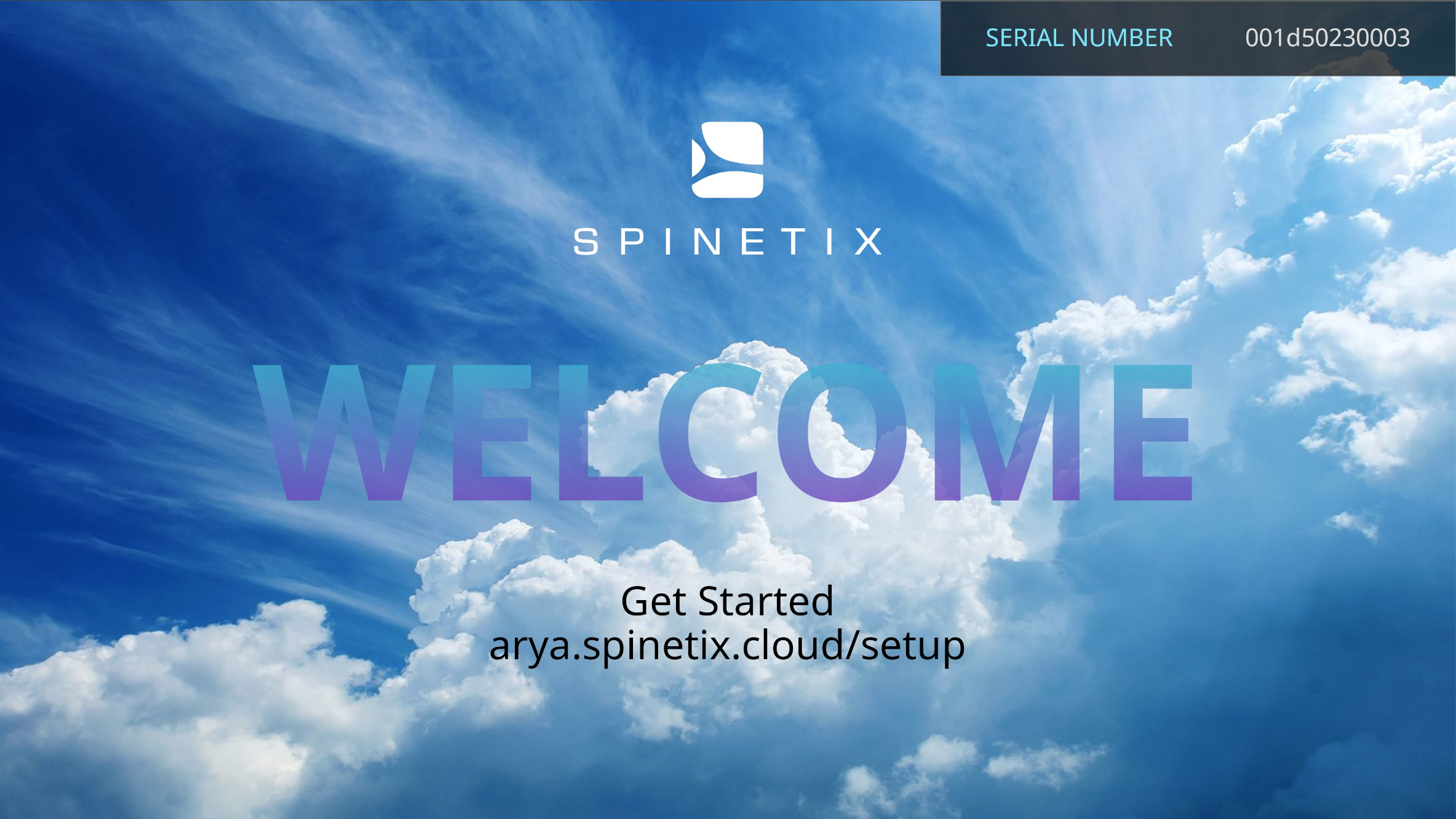

      Turn your player and your display on. After the player is done booting up, you should see a message reading “Welcome” on the screen.

    5. On the browser of your PC, go to

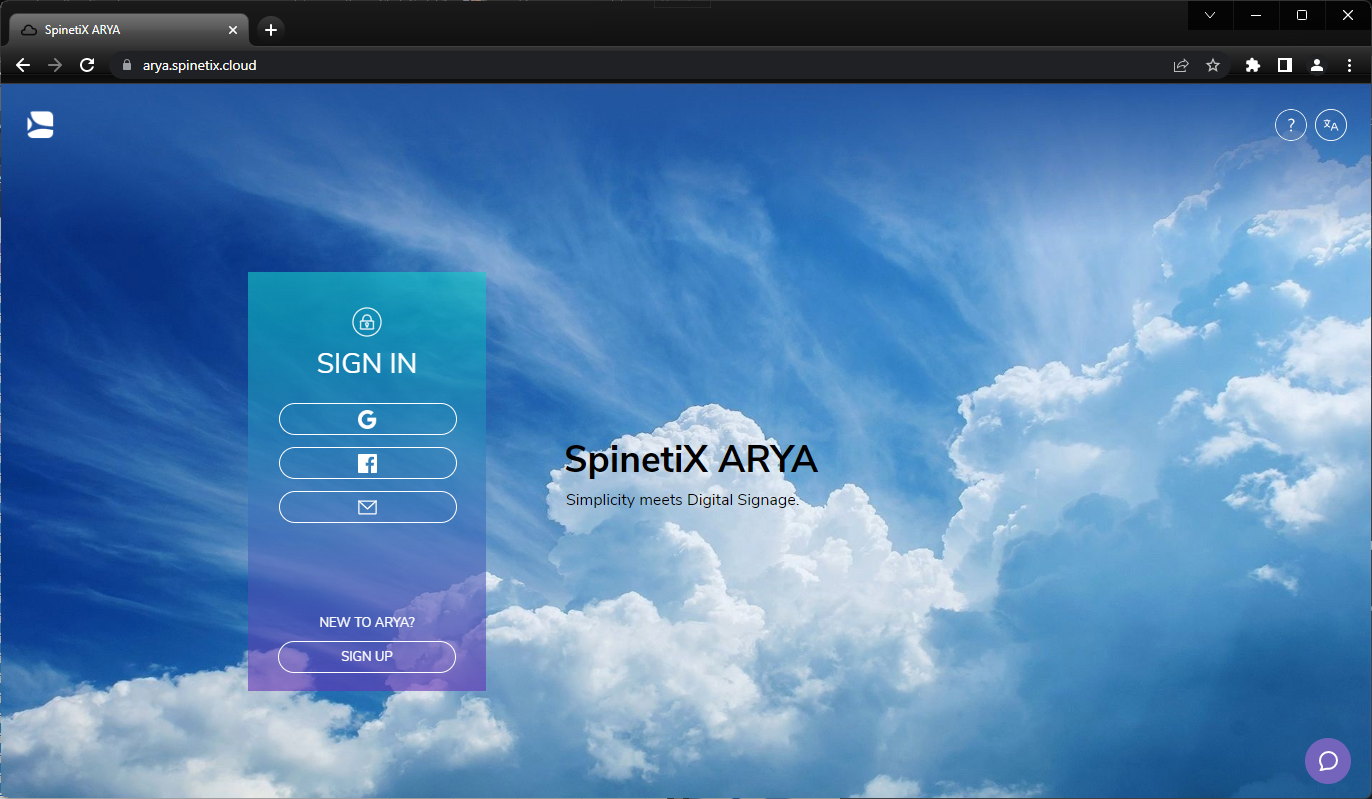

    6. Sign-in to your SpinetiX ARYA Account. If you do not have one yet, create a SpinetiX ARYA account.

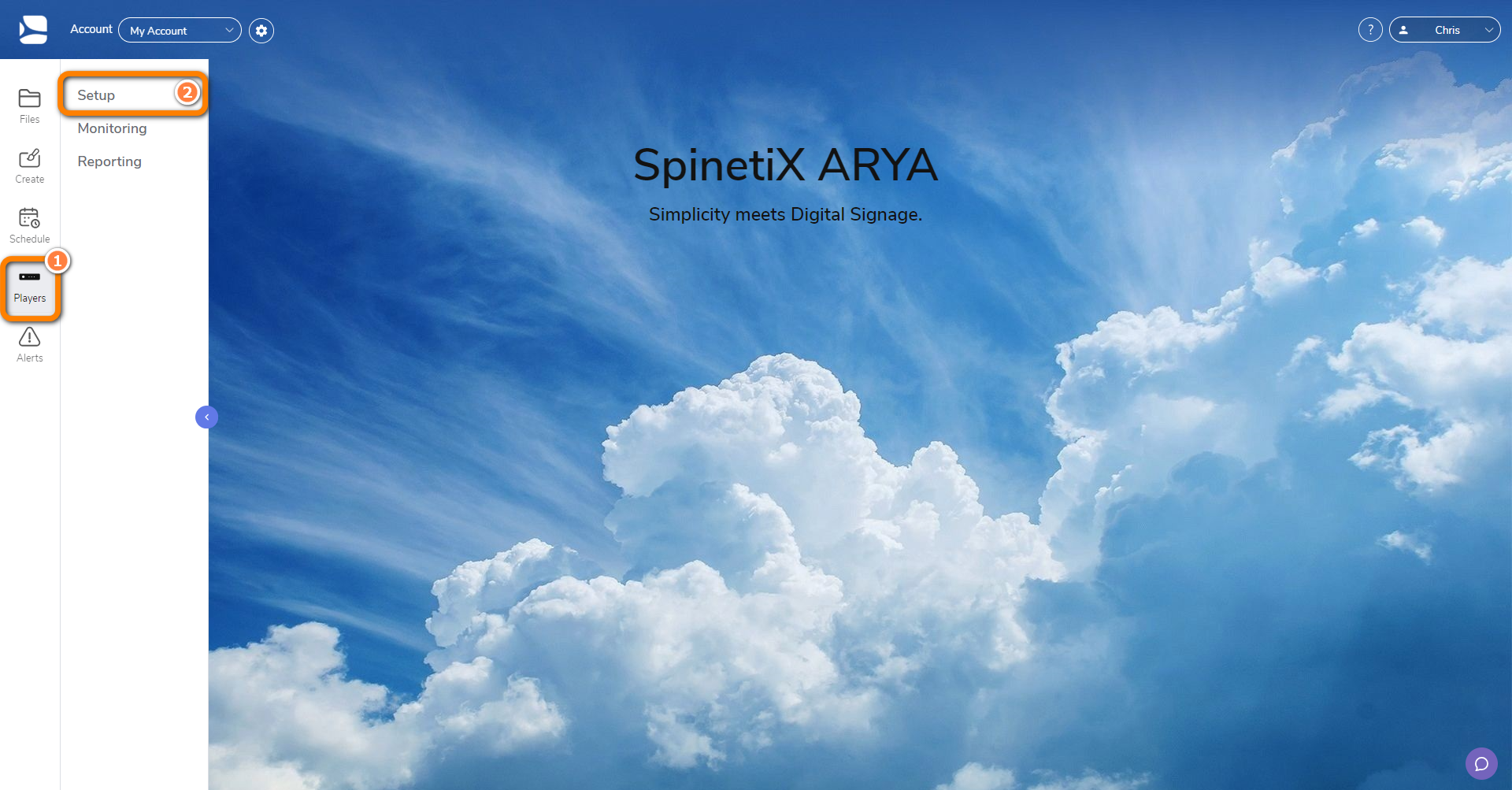

    7. Once logged in, from the main menu, click on “PLAYERS” and then "Setup".

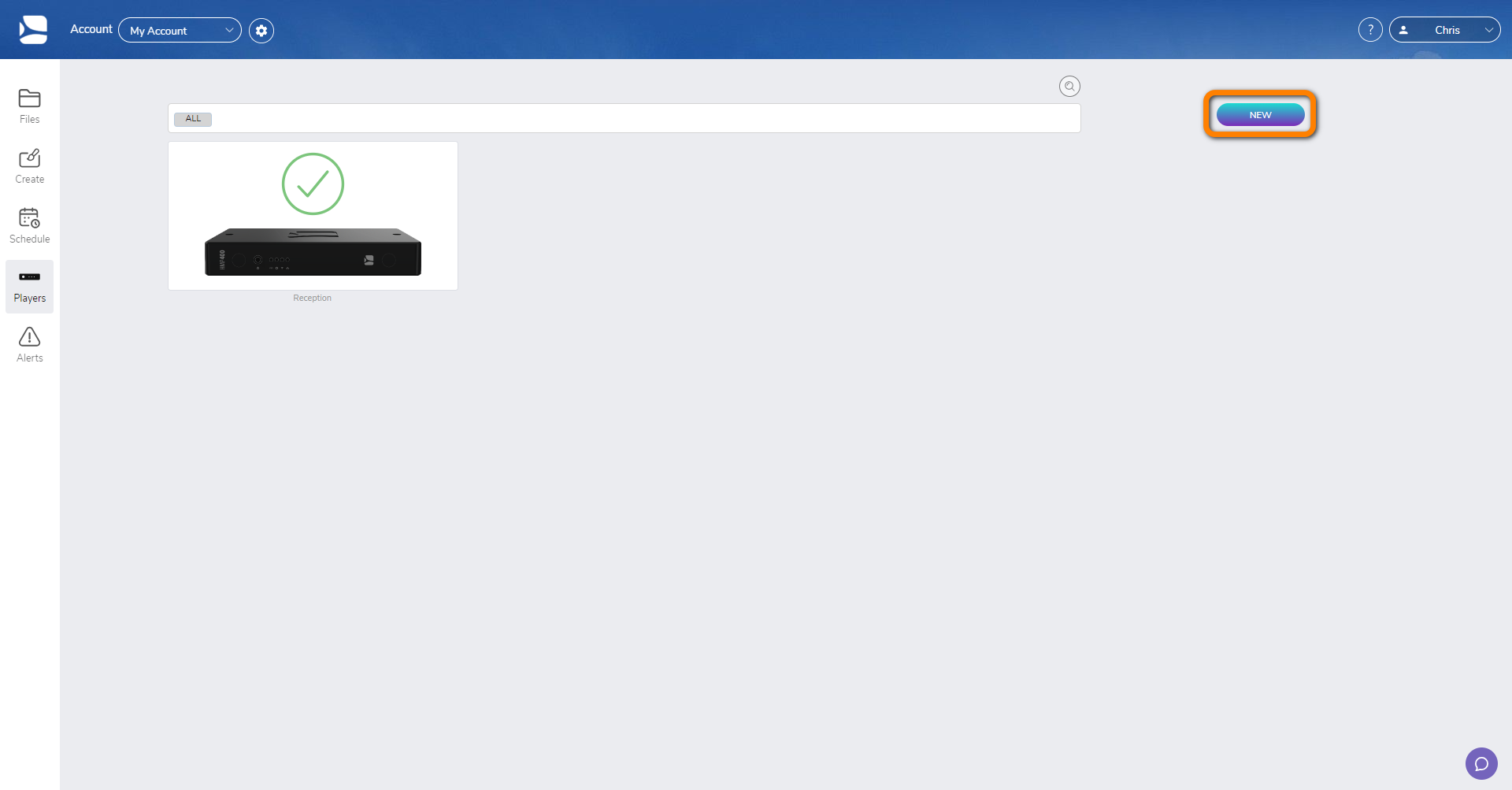

    8. From the next screen, you will see all connected players to your account (if any). Click on the “Add Player” button on the top right.

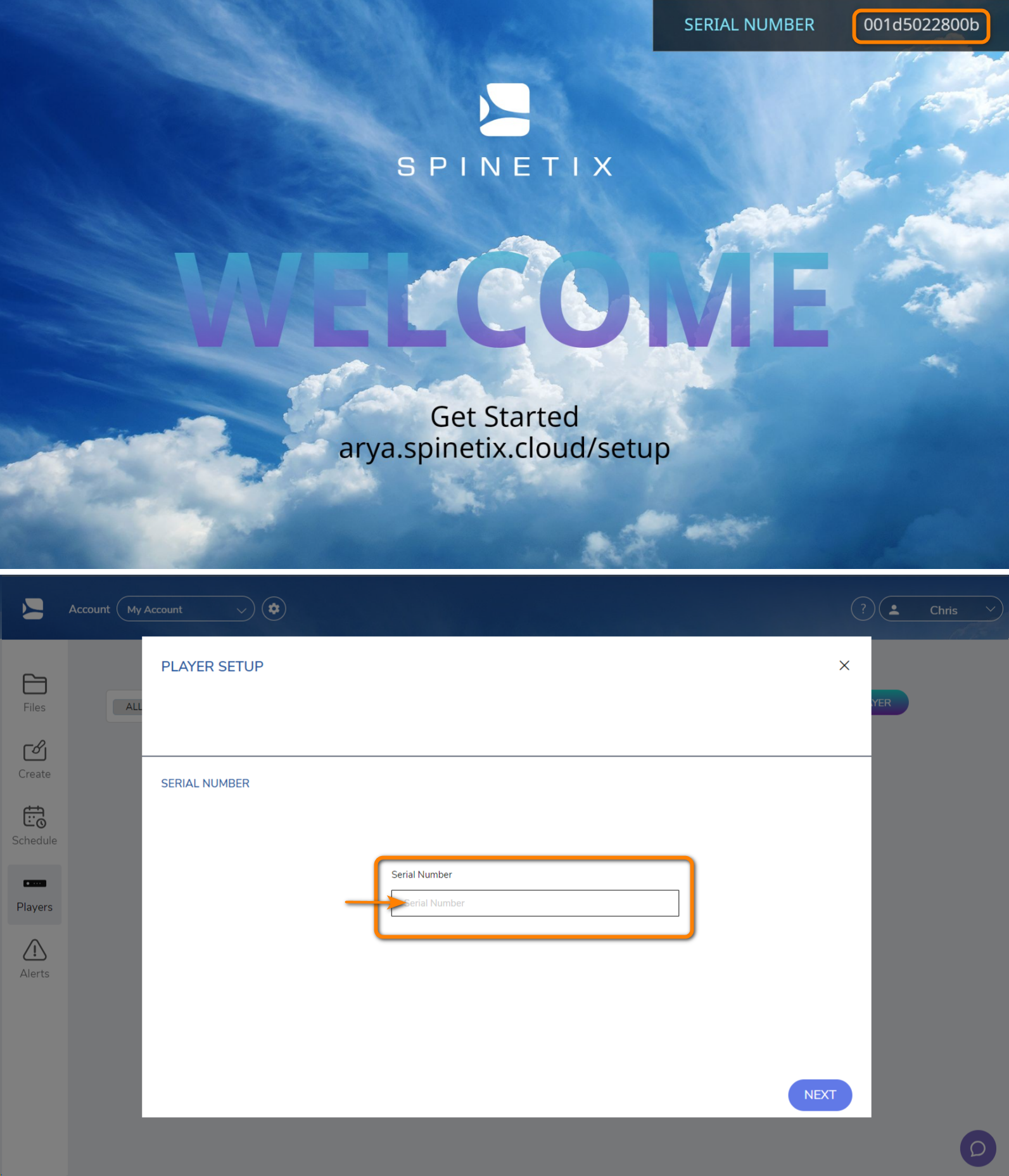

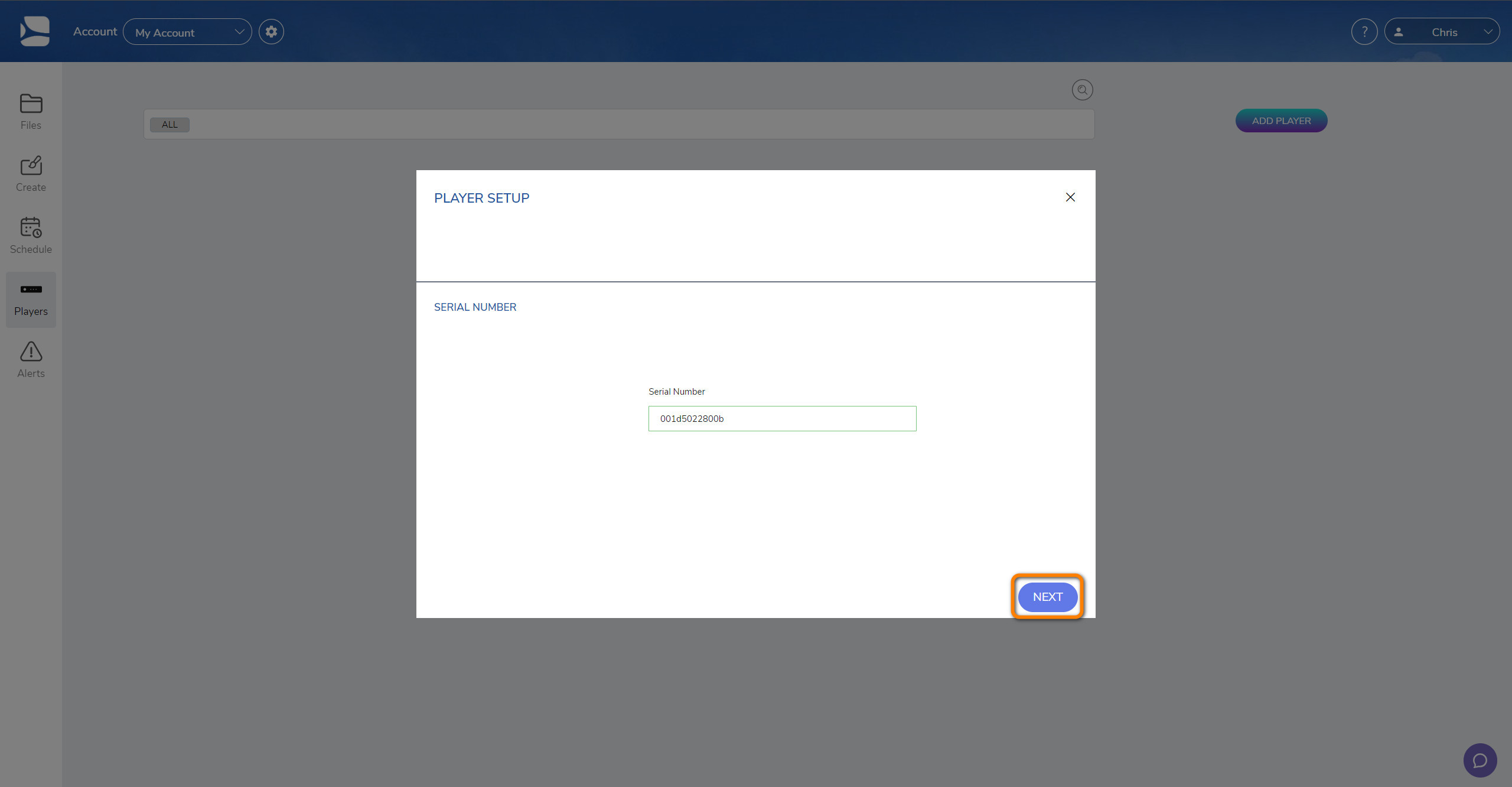

    9. Enter the serial number displayed on your screen in the space provided by SpinetiX ARYA.
    10. Click “NEXT”.

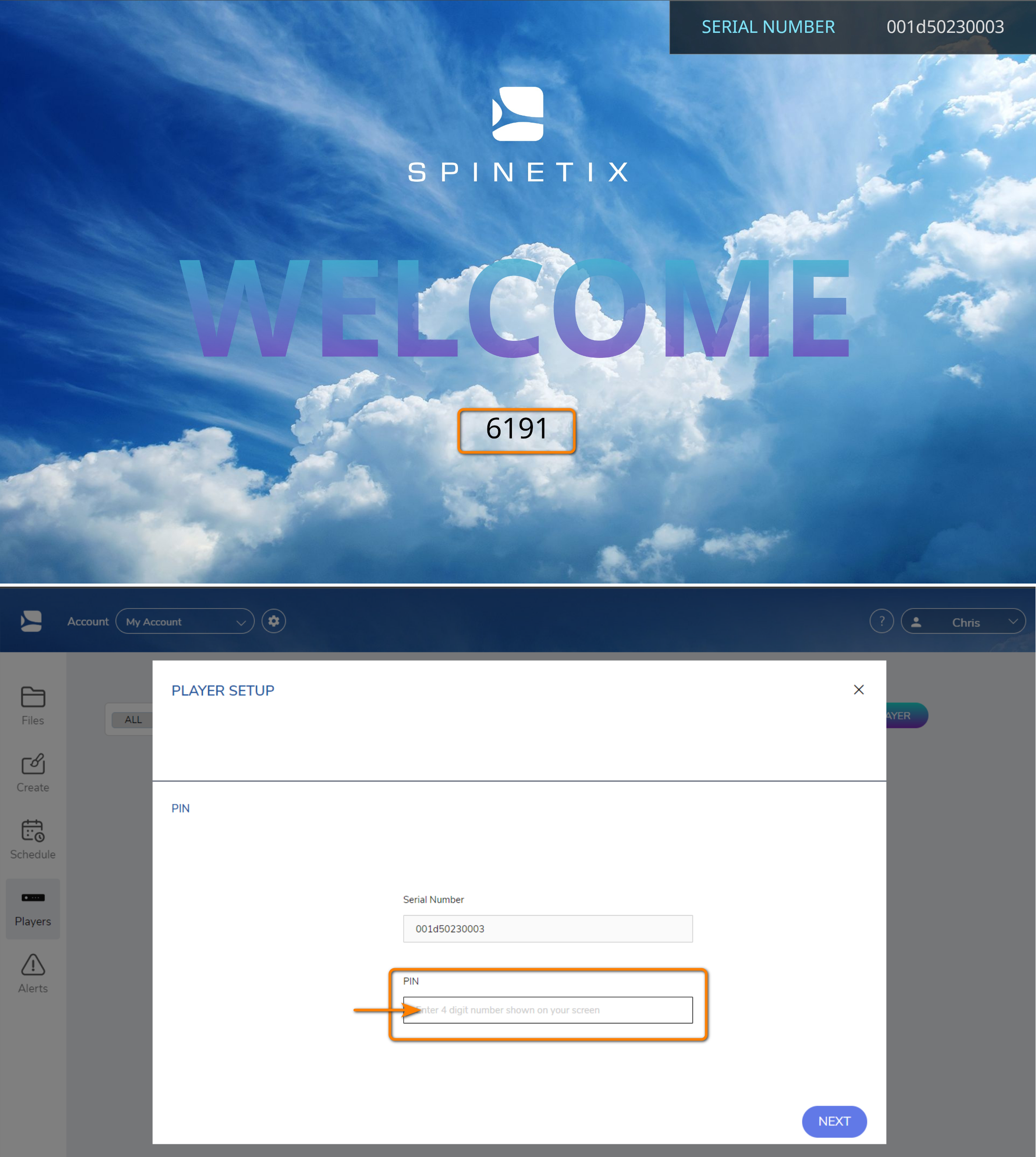

    11. Your display will now show a 4-digit PIN. Enter that number in the space provided by SpinetiX ARYA.

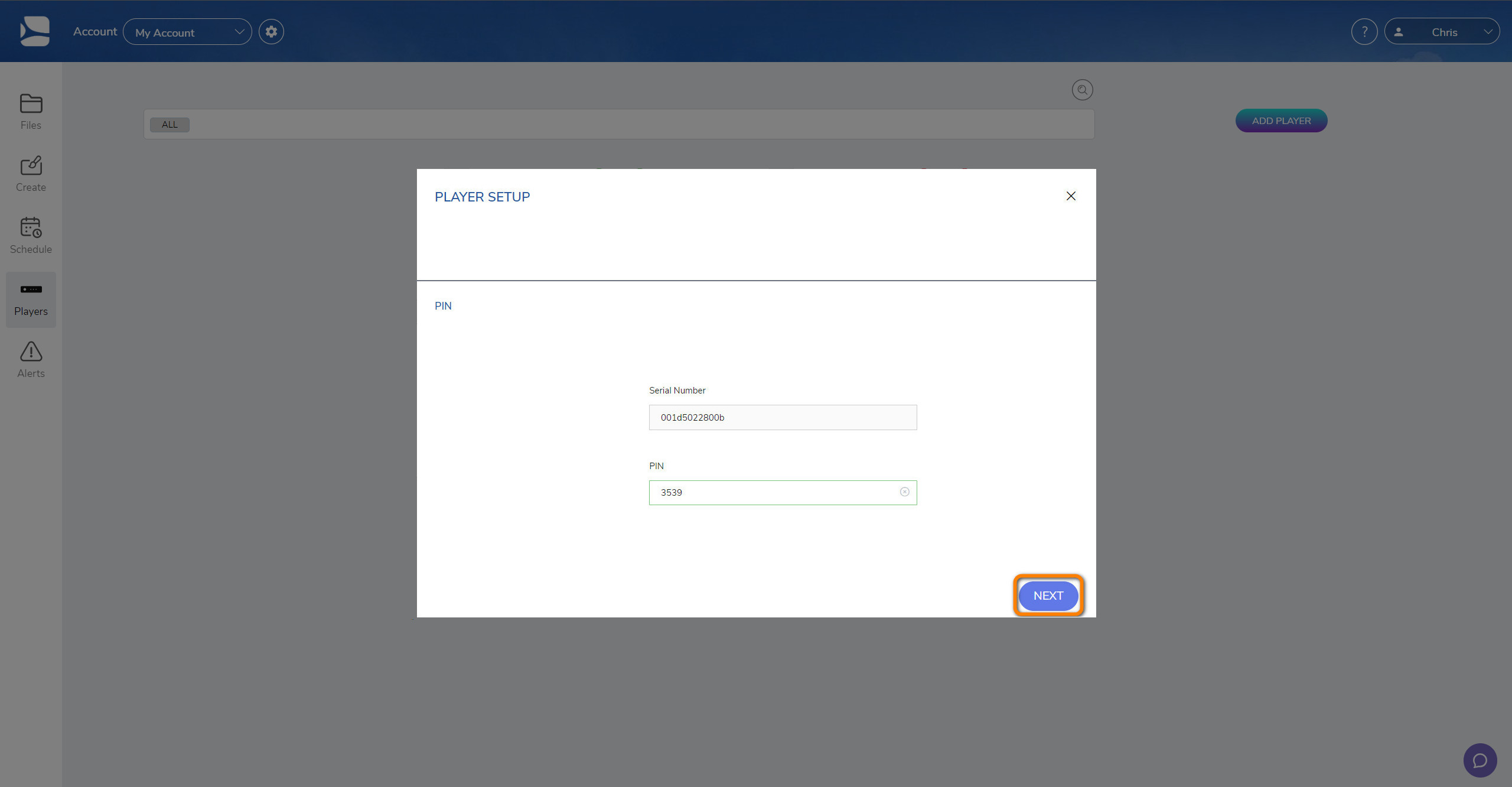

    12. Click “NEXT”.

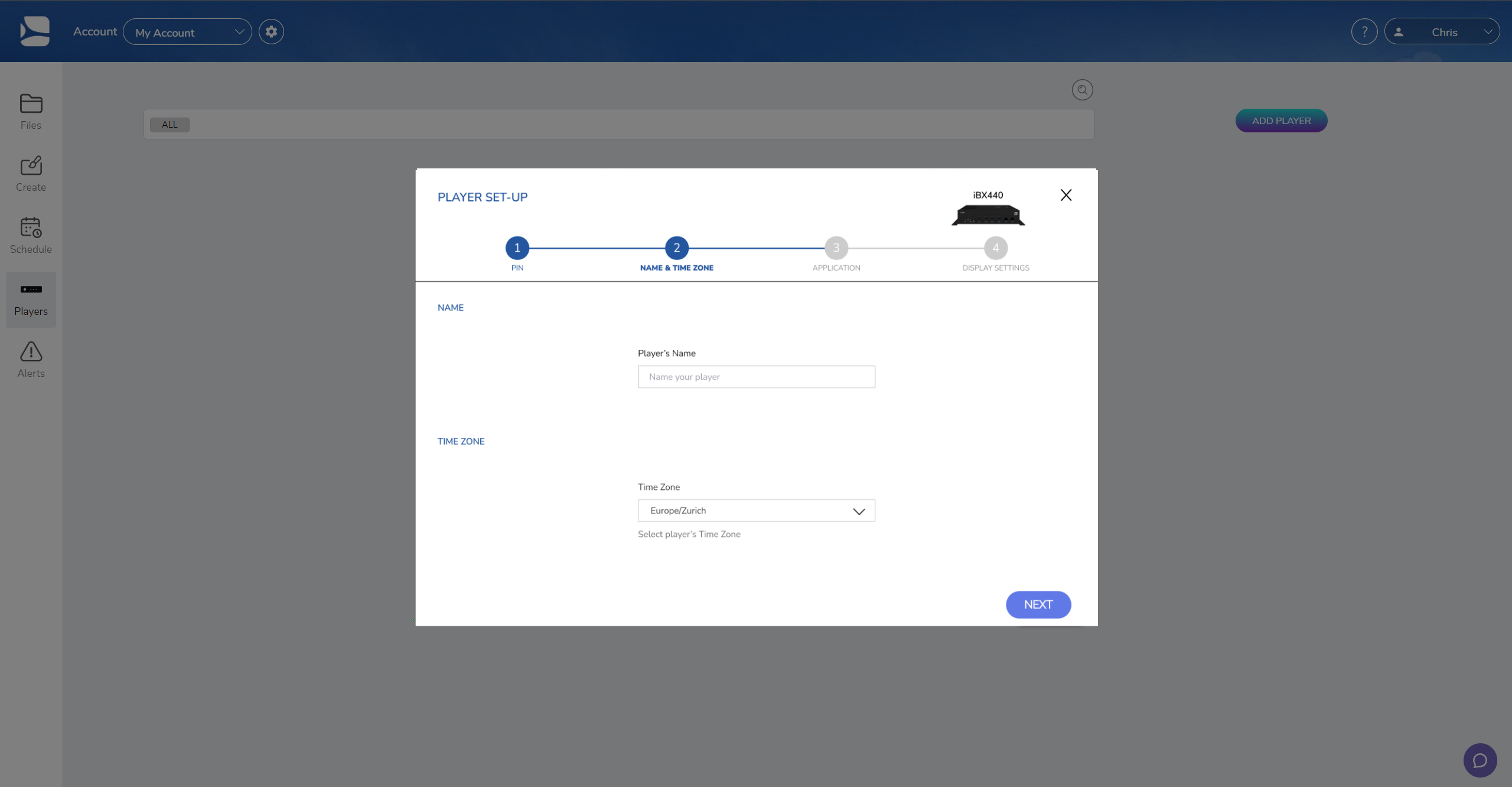

    13. Give your player a name, for example “Lobby”, and select the player's time zone, then click “NEXT”.

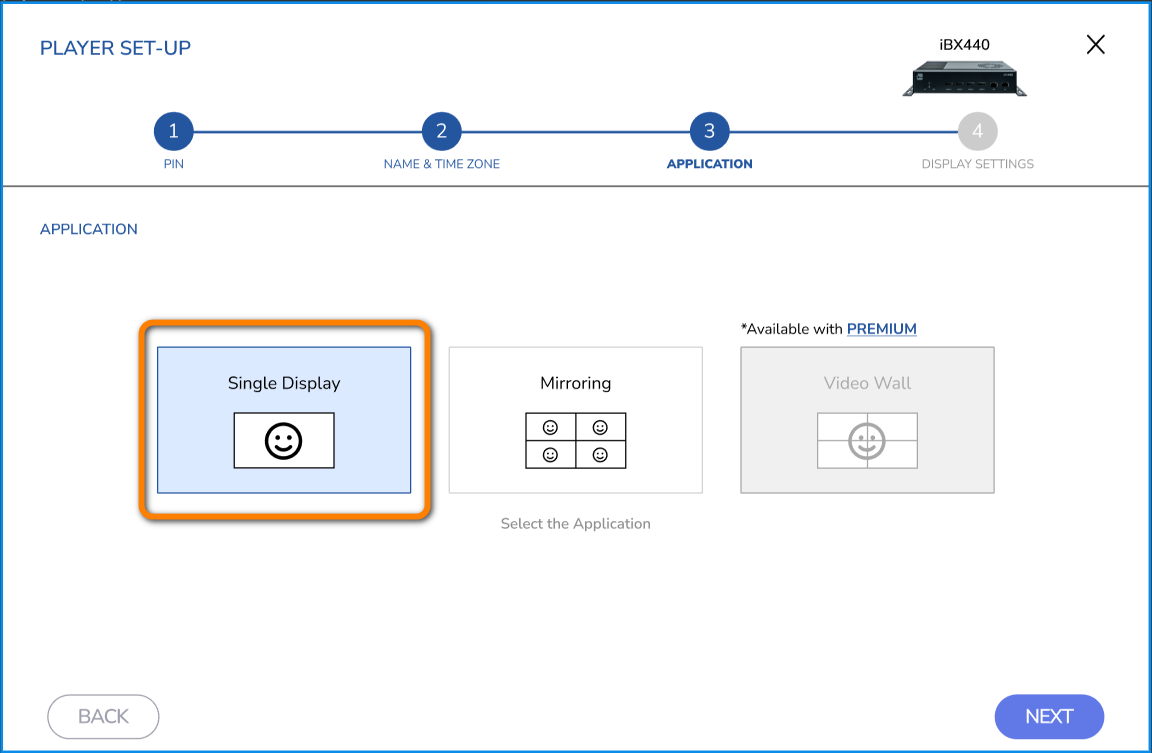

      and for the application, Select Single display.

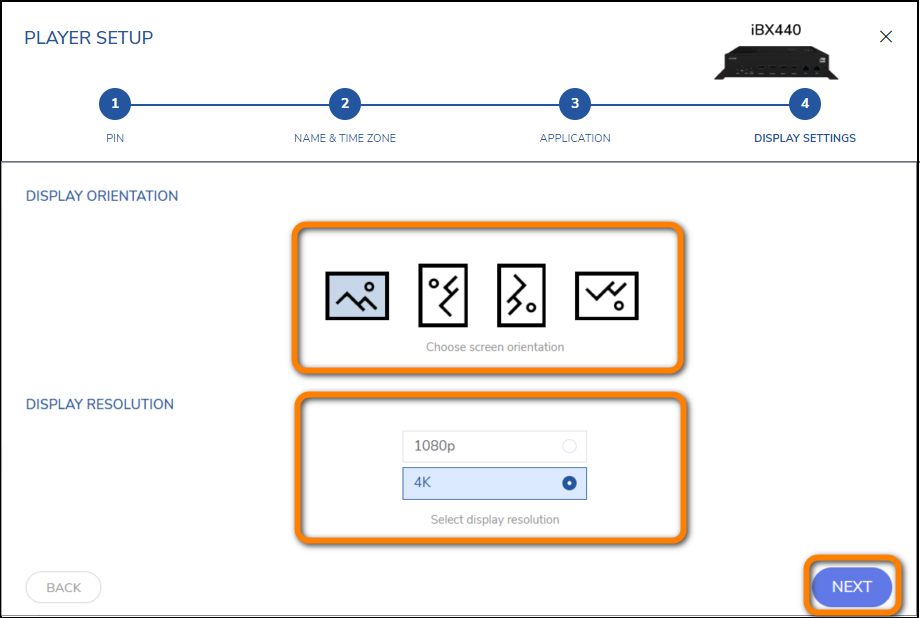

    14. Choose the orientation and resolution, then click “Finish".
